Cable Construction

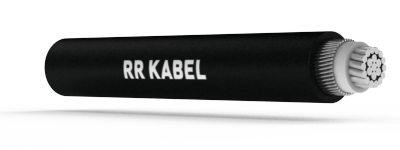

1.1 kV, 1 cores AL / CU conductor, PVC insulated, aluminum steel strip / wire armoured cables as per IS 1554 Part-1.
Conductor : AL up to 10 Sq. mm conductor are solid Cl. 1 as per IS 8130. And above 10 Sq. mm conductor are stranded round or compact
Cl. 2 as per IS 8130
In CU 4 & 6 Sq. mm conductor are solid Cl. 1 or stranded Cl. 2 as per IS 8130. 10 Sq. mm & above stranded round or stranded compact
Cl. 2 as per IS 8130
Insulation : PVC Type – A, as per IS 5831.( Option : HR PVC Type – C, as per IS 5831)
Core Color : Red or yellow or blue or black or natural
Armouring : Single armouring of aluminum wire or aluminum strip as per IS 1554 P – 1
Outer Sheath: PVC Type ST – 1 as per IS 5831 (Option : PVC Type ST – 2 as per IS 5831 / FR Type / FRLS Type)
Cable Color : Black (Options : Any other color as per requirement)
