Application
For use in connections of household appliances and wiring purposes. It is also used in manufacture of cords.
Standard
Adapted to DIN VDE 0281, 0293, 0295 with insulation thickness for 1.0 kV type.
Technical Data
Nominal Voltage: U /U 450/750V o
Insulation Resistance: Min. 20 GΩ x cm
Temperature Range: Flexing -5°C to +70°C
Fixed Installation : -30°C to +70°C
Minimum Bending Radius: Flexing 7.5 x cable ø. Fixed Installation 4 x cable ø
Test Voltage: 4000V
Breakdown Voltage: Min. 8000V

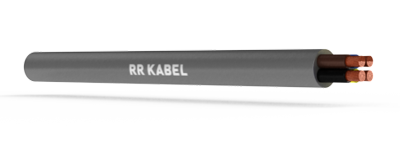

Cable Construction
Bare copper, fine wire conductors, as per EN 60228 Cl.5.
Special PVC core insulation TI2, to EN 50363-3.
Harmonised core colour to HD 308.
For cores above 5 cores black core with continuous white numbering according to DIN VDE 0293.
Green-Yellow earth core in outer layer (3 cores and above).
Cores stranded in layers with optimal lay-length.
Special PVC outer sheath TM2, to EN 50363-4.1.
Colour Grey (RAL 7001).
Properties
PVC self-extinguishing and flame retardant according to EN 60332-1-2.
