Application
For flexible use with medium and free movement without tensile stress or forced movements in dry, moist and wet rooms as well as outside (fixed installation). These cables are used for manufacturing machines, machine tools. Also used in conveyor belts and product lines.
Standard
Adapted to DIN VDE 0262, DIN VDE 0281 Part 13 with increased insulation thickness for 1 kV.
Technical Data
Nominal Voltage : U / U 0.6 / 1 kV O
Insulation Resistance : Min. 20 GΩ x cm
Temperature Range : Occasional flexing -5°C to +70°C. Fixed installation -30°C to +70°C
Minimum Bending Radius : Flexing 15 x cable ø. Fixed installation 4 x cable ø
Test Voltage : 4000V
Breakdown Voltage : Min. 8000V

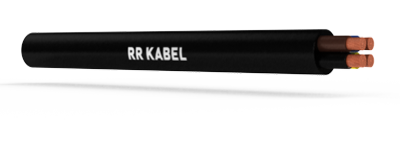

Cable Construction
Bare copper, fine wire conductors, to EN 60228 Cl.5.
Core insulation of PVC, TI2 to EN 50363-3.
Core colour coded as per JB/OB colour coded.
Cores stranded in layers with optimal lay-length.
Jacket of TM2, EN 50363-4-1, color black RAL 9005.
Core identification code : As per VDE 0293-302/HD 308 S2
Properties
PVC self-extinguishing and flame retardant according to EN 60332-1-2.
UV & weather resistant according to ASTM G 154.
Ozone resistant according to EN 50396.
