Application

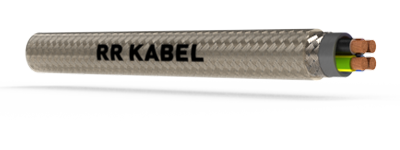

JB-YSY cables are used as measuring and control cables in tool machinery, plant installation, power stations and in data equipment. The
steel braid ensures best possible protection against mechanical damage. The galvanized coating on the steel wire braiding not only helps
protect against corrosion, but also notably improves the soldering properties.
Standard
Adapted to DIN/BS EN 50525-2-51.
Technical Data
Nominal Voltage : U / U 300 / 500V up to 1.5 mm². U /U 450/750V at 4.0 mm² and above O O
Insulation Resistance : Min. 20 GΩ x cm
Temperature Range : Flexing -5°C to +70°C; Fixed installation -30°C to +70°C
Minimum Bending Radius : Flexing 20 x cable ø. Fixed installation 6 x cable ø
Test Voltage : 4000V
Breakdown Voltage : Min. 8000V
Cable Construction
Bare copper, fine wire conductors, to bunch stranded EN 60228 Cl. 5.
Core insulation of TI2, EN 50363-3.
Cores colour coded as per JB/OB colour code.
Green/Yellow earth core in outer layer (3 cores and above).
Cores stranded in layers with optimal lay-length.
Special PVC inner jacket.
Galvanised steel wire screening.
Special PVC outer jacket.
Colour transparent (also available in grey).
Core identification code : As per VDE 0293-302/HD 308 S2
Properties
*PVC self-extinguishing and flame retardant according to EN 60332-1-2.
