Application
For use as a data and control cable in machinery, computer systems etC as well as a signal cable for electronics. The high level of degree of interference protection. The screening density assures disturbance-free transmission of all signals and impulses. screening ensures a high. Such cables can also be used for outdoor applications for the permitted temperature range.
Technical Data
Standard: In acC to HD 21.13 S1 resp. VDE 0281-13 and HD 22.10 S1
Temperature Range: Flexing -5°C to +70°C. Fixed installation -30°C to +70°C
Nominal Voltage: U / U 300 / 500 V O
Insulation Resistance: Min. 20 GΩ x cm
Minimum Bending Radius: Flexing 20 x cable ø. Fixed installation 6 x cable ø
Test Voltage: Core/core: 4000V. Core/screen: 2000V

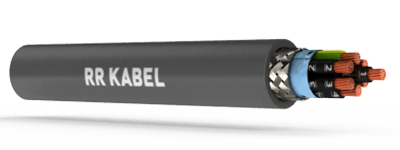

Cable Construction
Bare copper, fine wire conductors, bunch stranded EN 60228 Cl. 5.
Core insulation of PVC TI2, EN 50363-3.
Black core with continuous white numbering to DIN VDE 0293.
Green/yellow earth core in outer layer (3 cores and above).
Cores stranded in layers with optimal lay-length.
PETP tape.
Tinned copper, braided screen, approx 85% coverage.
Special polyurethane outer sheath (PUR).
Sheath colour: Grey (RAL 7001).
Properties
Extensively oil resistant.
Abrasion and notch resistant.
Low adhesive surface.
Resistant to hydrolysis and microbes.
EMC: Compliant space and weight saving due to thin cable diameters.
UV resistant to ASTM G 154.
To optimise the EMC features we recommend a large round contact of the copper braiding on both ends.
