Application
For use as a data and control cable in machinery, computer systems etC as well as a signal cable for electronics. The high level of screening ensures a high degree of interference protection. The screening density assures disturbance-free transmission of all signals and impulses. Such cables can also be used for outdoor applications for the permitted temperature range.
Technical Data
Standard: Adapted to EN 50525-2-51
Nominal Voltage: U / U 300 / 500V O
Insulation Resistance: Min. 20 GΩ x cm
Temperature Range: Flexing -40°C to +90°C. Fixed installation -50°C to +90°C
Minimum Bending Radius: Flexing 15 x cable ø. Fixed installation 6 x cable ø
Test Voltage: 3000V

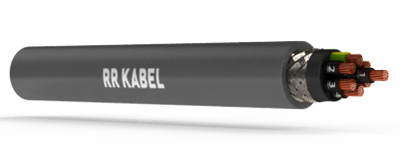

Cable Construction
Bare copper, fine wire conductors, bunch stranded EN 60228 Cl. 5.
Core insulation of TPE.
Black core with continuous white numbering to DIN VDE 0293.
Green/yellow earth core in outer layer (3 cores and above).
Cores stranded in layers with optimal lay-length.
TPE inner sheathed.
Tinned copper braided screen.
Special polyurethane outer sheath (PUR).
Sheath colour : Grey (RAL 7001).
Properties
High oil resistance.
Abrasion and notch resistant.
Low adhesive surface.
Resistant to hydrolysis and microbes.
Halogen free and flame retardant to EN 60332-1-2.
UV resistant to ASTM G 154.
To optimise the EMC features we recommend a large round contact of the copper braiding on both ends.
