Application
Installation of intrinsically safe circuits.
Standard
Adapted to DIN EN 60079-14: VDE 0165 Part 1.
Technical Data
Nominal Voltage : U / U 300 / 500V. < 50V AC < 75V DC O Insulation Resistance : Min. 20 GΩ x cm Temperature Range : Flexing -5°C to +70°C. Fixed installation -30°C to +70°C Minimum Bending Radius : Flexing 20 x cable ø. Fixed installation 6 x cable ø Test Voltage : 3000V

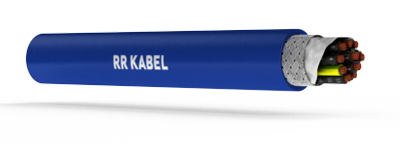

Cable Construction
Core insulation of special PVC TI2 EN 50363-3.
Black core with continuous white numbering according to DIN VDE 0293.
Cores stranded in layers with optimal lay-length.
Plastic foil wrapping.
Tinned-copper braided screen, approx. 85% coverage.
Outer sheath of special PVC, TM2 to DIN/BS EN 50363-4.1.
Colour Blue (RAL 5015).
Properties
PVC self-extinguishing and flame retardant according to IEC 60332-1-2.
Mutual capacitance: Core to core approx. 140 nF/km core to screen approx. 185 nF/km.
Inductance: approx 0.68 mH/km.
