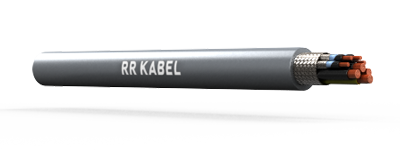

Application
Connecting cable between frequency convertor and motor. Connecting cable between servo controller and motor. This is one cable for multiple circuits. For use in dry damp or wet interiors with normal mechanical stress conditions.
Technical Data
Standard : CoreVDE 0812/0250/0281
NominalVoltage : Supply cores : 600 / 1000V
Control Core Pairs : 250V / AC
Insulation Resistance : > 20 GΩ x cm
Temperature Range : Flexing -5°C to +70°C
Fixed installation -30°C to +70°C
Minimum Bending Radius : Flexing 20 x cable ø
Fixed installation 6 x cable ø
TestVoltage : Supply cores: C / C, C / S : 4000V
Control cores : C / C : 1500V, C / S : 750V
Cable Construction
Conductor fine wire according to EN 60228, cl. 5.
Supply cores : black with white numbers according toVDE 0293 and GN-YE protective conductor. Control pairs 0.34 Sq. mm, colour coded – WH/BR, GN/YE. Control pairs 0.5 Sq. mm and above – black coloured with white numbers toVDE 0293. Control pair with laminated aluminium film and tinned copper braiding.
The model with one control pair does not have laminated aluminium foil. Tinned copper braiding PVC outer sheath, grey (RAL 7001).
Properties
Flame retardant according to EN 60332-1-2.
Low mutual capacitance. For use in dry, wet and damp interiors.
Meets EMC requirements.
Due to the optimal screening an interference-free operation of
frequency converters is obtained SERVO 60700 CY is also
available with UV resistance property as SERVO 60700 CY UV.
Kindly add ‘UV’ after the part no. for UV resistant cable.
UV resistant to ASTM G 154.
