Application
These cables are used for internal wiring of panels and electrical equipment. These are used as connection wire in machines laid in protective tubes and flexible pipes and also for motors and transformers.
Specifications
Standard : UL 1015, 758, CSA C 22.2 No 210 & BS 6231
NominalVoltage : 600V
UL – Type AWM 105°C 600V
CSA – Type AWM 105°C 600V
BS 6231 CK type 90°C 600V
TestVoltage (Spark test)
AWG 24 : 4kV
AWG 22 and 20 : 5kV
AWG 18 to 16 : 6kV
≥ AWG 8: 7.5kV
Temperature Range : Flexing -5°C to +105°C. Fixed installation -20°C to +105°C
Bending Radius :
Cable diameter ≤ 8 mm : 4 x outer diameter
Approx diameter > 8 to 12 mm : 5 x outer diameter
Approx diameter > 12 mm : 6 x outer diameter

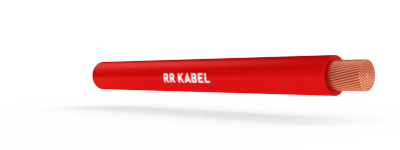

Cable Construction
Stranded copper conductor, plain or tinned.
PVC-core insulation according to UL – Standard 1581, Class 43 and CSA – C22.2 No. 210 ULVW – 1 and CSA FT – 1, heat and damp resistant
Properties
Conditionally resistant to – Oils, Solvents, Acids, Dye.
PVC self – extinguishing and flame retardant, test method to ULVW -1 and CSA FT – 1.
Flame retardant to EN 60332 – 1- 2.
Cable Design Parameters
Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the insulation colour required:
01 – green, 02 – black, 03 – red, 04 – blue, 05 – yellow, 06 – green/yellow, 07 – white, 08 -Violet, 09 – brown, 10 – orange, 11 – pink, 12 – grey,
13 – light blue
