Application
These cables are used for internal wiring of panels and electrical equipment. These are used as connection wire in machines laid in protective tubes and flexible pipes and also for motors and transformers.
Specifications
Standard : UL – Std. 758, CSA C 22.2 No. 210
NominalVoltage : 600V
UL – type AWM 105°C 600V
CSA – type AWM 105°C 600V
TestVoltage (spark test)
AWG 24 : 4kV
AWG 22 and 20 : 5kV
AWG 18 to 16 : 6kV
≥ AWG 8 : 7.5kV
Temperature Range : Flexing -5°C to +105°C. Fixed installation -20°C to +105°C
Temperature at Conductor : Max. UL and CSA : +105°C
Bending Radius : Flexing 10 x cable ø’. Fixed installation 5 x cable ø

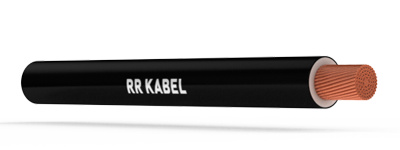

Cable Construction
Annealed plain or tinned stranded copper conductor.
PVC – core insulation according to UL – Standard 1581, Class 43 Tab. 50.182, heat and damp resistant.
Properties
Conditionally resistant to oils, solvents, acids and dyes.
PVC self – extinguishing and flame retardant, test method to ULVW – 1/CSA FT 1.
Cable Design Parameters
Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the insulation colour required:
01 – green, 02 – black, 03 – red, 04 – blue, 05 – yellow, 06 – green/yellow, 07 – white, 08 -Violet, 09 – brown, 10 – orange, 11 – pink, 12 – grey.
