Application
These cables are used for internal wiring of switchboards, electronic and electrical equipment, e. g. households, radio of televisions, monitor and control desks.
Specifications
Standard : UL – Std. 758 , CSA C 22.2 No.210
NominalVoltage : 300V
TestVoltage : 2000V
TestVoltage (spark test)
AWG 26 – 20 : 4kV, AWG 10 -18: 5kV
Temperature Range : Flexible -5°C to + 105°C. Fixed installation -20°C to + 105°C
CSA – AWM I A/B
Bending Radius : Flexing 10 x cable ø. Fixed installation 5 x cable ø

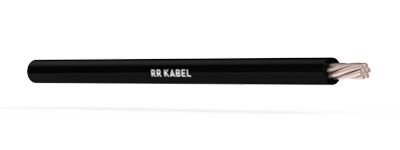

Cable Construction
Annealed plain or tinned stranded copper conductor.
PVC – core insulation according to UL – Standard 1581, Class 43 Tab. 50.182, heat and damp resistant.
Properties
Conditionally resistant to oils, solvents, acids and dyes.
PVC self – extinguishing and flame retardant, test method to ULVW – 1/CSA FT 1.
Cable Design Parameters
Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the insulation colour required:
01 – green, 02 – black, 03 – red, 04 – blue, 05 – yellow, 06 – green/yellow, 07 – white, 08 -Violet, 09 – brown, 10 – orange, 11 – pink, 12 – grey,
13 – light blue.
