Applications
These cables are suitable for permanent outdoor long-term use, under variable and harsh climate conditions. They are designed and tested to operate at a normal maximum conductor temperature of 90°C and for 20,000 hours up to 120°C. Therefore, the expected period use is 30 years under normal usage conditions.
Standards
International : 2 Pfg 1169/08.2007 OR EN 50618

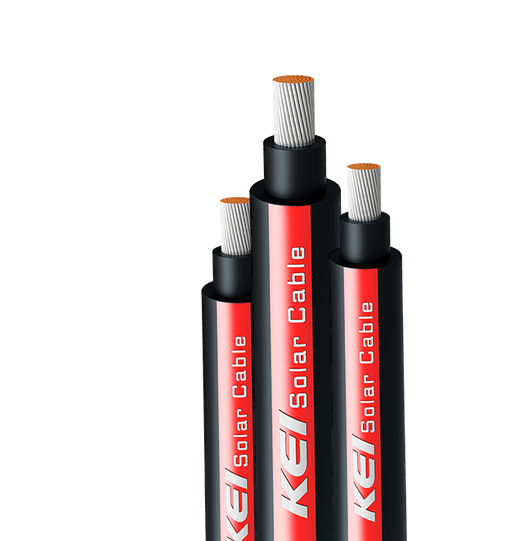

Design
- Conductor – Flexible Electrolytic Tinned fine copper strands, acc. To IEC 60228, class 5
- Insulation – Crosslinked Halogen Free & Flame Retardant Insulation , Colour : White , Red Or Black
- Outer Sheath – Crosslinked Halogen Free & Flame Retardant UV and ozone resistant Sheath in Black Or Black with Red Stri
Electrical Properties
- Rated DC Voltage: 1.5 kV
- Rated DC Voltage: 1.5 kV
- Maximum Permitted DC Voltage: 1.8 kV
- Maximum Permitted AC Voltage: 1 kV
- Spark Test: 6000 Vac (8400 Vdc)
- Voltage Withstand: 6.5 kV Ac & 15 kV dc
Thermal Characteristics
- Ambient Temperature: -40°C ~ +90°C
- Maximum Temperature at Conductor: 120°C (20000h)
- Short Circuit Temperature: 200°C (at conductor max. 5sec)
- Thermal Endurance Test : According to EN 60216-2 (temperature index +120°C)
Chemical Characteristics
- Mineral Oil Resistance: according to EN 60811-2-1
- Ozone Resistance: according to EN 50396 part 8.1.3 Method B
- Very good resistance to oil and chemicals
- Acid & Alkaline Resistance: According to EN 60811-2-1
(Oxal acid and sodium hydroxide) - Weathering-UV Resistance
- Resistance to fire
- Acc. to EN 50618, Table 2
- Single Cable Flame Test: EN 60332-1-2
- Low Smoke Emission: EN 61034-2 (Light Transmittance > 70%)
- Halogen-free per EN 50525-1, Annex B.
Mechanical Characteristics
- Minimum Bending Radius : 6 x OD (fixed), 15 x OD (occasional flexing)
- Dynamic Penetration: According to requirement of Cables for PV systems
- Tensile Strength: 6.5 N/mm2 for insulation and 8 N/mm2 for sheathing – according to EN60811
- Elongation of Insulation and sheathing: 125% – according to EN60811
- Shrinkage : 2% at 120°C according to EN 60811-1-3
WHY KEI’s Solar Cables
KEI Solar cables provides the maximum efficiency and guarantee energy transmission throughout the useful life of your installation.
